Kite supports importing unwrapped displacement scenes from different InSAR processors:

Each processor delivers different file formats and metadata. In order to import the data into Kite, data has to be prepared. Details for each format are described in kite.scene_io.

Importing data to spool

When you have processed your InSAR data and aligned with the expected import conversions (kite.scene_io), you can use spool to import the data:

Importing and visualising unwrapped InSAR data with spool.
spool --load data/my_scene-asc.grd

Inspecting a scene with spool

You can use start InSAR Scene Inspection with Spool to inspect the scene and manipulate it’s properties.

Kite’s GUI spool is based on Qt5. Here we will import data, straight from a GMT5SAR scene.
from kite import Scene
sc = Scene.import_file('unwrap_ll.grd')

# Start the GUI
Alternatively spool can be started from command line.
# Start spool and import a displacement scene data
spool --load unwrap_ll.grd

# Or load from Kite format
spool my_scene.yml

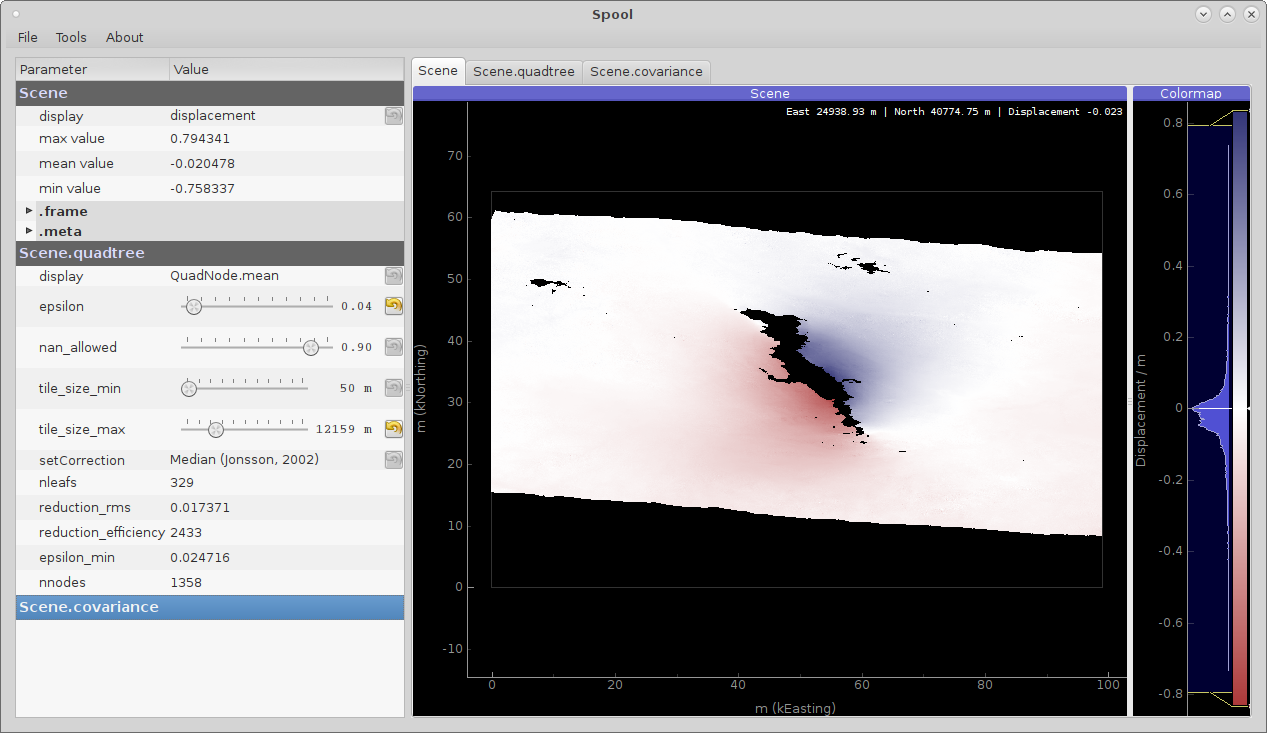

Figure 1: Manipulating unwrapped InSAR surface displacement data in Spool, Kite’s GUI.

Scripted data import

We will start with importing a scene from GMT5SAR using a Python script:

GMT5SAR is an open-source processor based on GMT. We will import a binary .grd file.
from kite import Scene

# We import a unwrapped interferogram scene.
# The format shall be detected automatically
# in this case processed a GMTSAR5

sc = Scene.import_data('unwrap_ll.grd')

# Open spool

Scripted scene setup

Initialisation of a custom scene through a Python script. Here we will import arbitrary data and define the geographical reference frame manually.

Setting up scene from 2D displacement data.
from kite import Scene

sc = Scene()
sc.displacement = num.empty((2048, 2048))

# Dummy line-of-sight vectors in radians
# Theta is the elevation angle towards satellite from horizon in radians.
sc.theta = num.full((2048, 2048), fill=num.pi/2)
# Phi, the horizontal angle towards satellite in radians, counter-clockwise from East.
sc.phi = num.full((2048, 2048), fill=num.pi/4)

# Reference the scene's frame lower left corner, always in geographical coordinates
sc.frame.llLat = 38.2095
sc.frame.llLon = 19.1256

# The pixel spacing can be either 'meter' or 'degree'
sc.frame.spacing = 'degree'
sc.frame.dN = .00005  # Latitudal pixel spacing
sc.frame.dE = .00012  # Longitudal pixel spacing

# Saving the scene

Saving the scene and quadtree/covariance

The native file structure of Kite is based on NumPy binary files together with YAML configuration files, holding all meta information and configurable parameters, such as:

This structure also holds the kite.Covariance.covariance_matrix, which requires a computational intensive task!

This code snippet shows how to import data from a foreign file format and saving it to kite’s native format.

Importing data and saving it in Kite format.
from kite import Scene

# The .grd is interpreted as an GMT5SAR scene
sc = Scene.import_data('unwrap_ll.grd')

# Writes out the scene in kite's native format
Kite’s file structure consists of only two files:

Download and import data from ARIA (NASA)

The ARIA web service provides unwrapped Sentinel-1 data covering selected regions. The data can be explore on the website. For this example we use wget to download the ascending and descending ARIA GUNW data products from ARIA from the 2019 Ridgecrest Earthquakes.

# Ascending
wget https://aria-products.jpl.nasa.gov/search/dataset/grq_v2.0.2_s1-gunw-released/S1-GUNW-A-R-064-tops-20190710_20180703-015013-36885N_35006N-PP-9955-v2_0_2/S1-GUNW-A-R-064-tops-20190710_20180703-015013-36885N_35006N-PP-9955-v2_0_2.nc

# Descending
wget https://aria-products.jpl.nasa.gov/search/dataset/grq_v2.0.2_s1-gunw-released/S1-GUNW-D-R-071-tops-20190728_20190622-135213-36450N_34472N-PP-b4b2-v2_0_2/S1-GUNW-D-R-071-tops-20190728_20190622-135213-36450N_34472N-PP-b4b2-v2_0_2.nc

Now use the Python package ARIA-tools to extract three channels (unwrappedPhase, incidenceAngle, azimuthAngle) from the ARIA data product:

We use two workdirs: ascending and descending.
# Extract into ascending/
ariaExtract.py -w ascending -f S1-GUNW-A-R-064-tops-20190710_20180703-015013-36885N_35006N-PP-9955-v2_0_2.nc -d download -l unwrappedPhase,incidenceAngle,azimuthAngle

# Extract into descending/
ariaExtract.py -w descending -f S1-GUNW-D-R-071-tops-20190728_20190622-135213-36450N_34472N-PP-b4b2-v2_0_2.nc  -d download -l unwrappedPhase,incidenceAngle,azimuthAngle

For more information see ariaExtract.py --help and the ARIA-tools documentation.

Import ARIA GUNW data into Kite

To import the data into spool use a regular load:

spool --load ascending


ARIA scenes are provided at a high resolution and calculation of the covariance matrix can take a long time!

Download and import data from COMET LiCSAR

A slim client for downloading COMET LiCSAR products is included in kite.clients. The script will download the passed unwrapped LiCSAR data and necessary LOS GeoTIFFs into the current directory.

This example will download data from the 2017 Iran–Iraq earthquake (M 7.3) from the COMET LiCSAR Portal:

Download data from COMET LiCSAR Portal.
python3 -m kite.clients http://gws-access.ceda.ac.uk/public/nceo_geohazards/LiCSAR_products/6/006D_05509_131313/products/20171107_20171201/20171107_20171201.geo.unw.tif .

Now just load the scene into Kite or spool.

Importing the scene in spool.
spool --load 20171107_20171201.geo.unw.tif

Converting StaMPS velocities to a Kite scene

The CLI tool stamps2kite loads PS velocities from a StaMPS project (i.e. processed mean velocity data through ps_plot(..., -1);), and grids the data into mean velocity bins. The LOS velocities will be converted into a Kite scene.

StaMPS’ data has to be fully processed through and may stem from the master project or from one of the processed small baseline pairs. The required files are:

  • ps2.mat Meta information and geographical coordinates.

  • parms.mat Meta information about the scene (heading, etc.).

  • ps_plot*.mat Processed and corrected LOS velocities.

  • mv2.mat Mean velocity’s standard deviation.

  • look_angle.1.in Look angles for the scene.

  • width.txt Width dimensions of the interferogram and

  • len.txt length.

Importing StaMPS mean velocities into a gridded Kite scene.
stamps2kite stamps_project/ --resolution 800 800 --save my_kite_scene

For more information on the util, see the --help.
