InSAR Scene Inspection with Spool

InSAR displacement scenes are complex visual datasets, the Spool user interface offers interactive and intuitive analysis and parametrization of all aspects of the container

Note

Naming conventions in the GUI represent the kite.Scene syntax!

A usage scenario for the scenario could look like this - start the GUI:

spool --load test/data/20110214_20110401_ml4_sm.unw.geo_ig_dsc_ionnocorr.mat

Note

The dataset is part of the GitHub repository.

Parametrization of the Quadtree and Covariance through the interface is shown in the latter paragraphs of this page. From spool we can save the scene and it’s quadtree and covariance parametrization through File ‣ Save Scene. Let’s save the scene as /tmp/myanmar_2011.[npz,yml].

Now we can utilize kite’s python framework to work with the subsampled quadtree and errors/weights.

from kite import Scene
sc = Scene.load('/tmp/myanmar_2011.yml')

# Get the total leaf weight
leaf_weights = []
for l in sc.quadtree.leafs:
    leaf_weights.append((l.id, l.weight))
    # sc.covariance.getWeight(l) == l.weight
    # True

# Get the covariance
cross_weights = []
for l1 in sc.quadtree.leafs:
    for l2 in sc.quadtree.leafs:
        w = sc.covariance.getLeafCovariance(l1, l2)
        cross_weights.append((l1.id, l2.id, w))

LOS Displacement inspection

The first tab offers simple data inspection of plain parameters. From the side menu we can choose displacement, Line of Sight incident angles and unit their georeferenced unit vectors. display offers the components displacement, phi, theta, thetaDeg, degPhi, unitE, unitN, unitU.

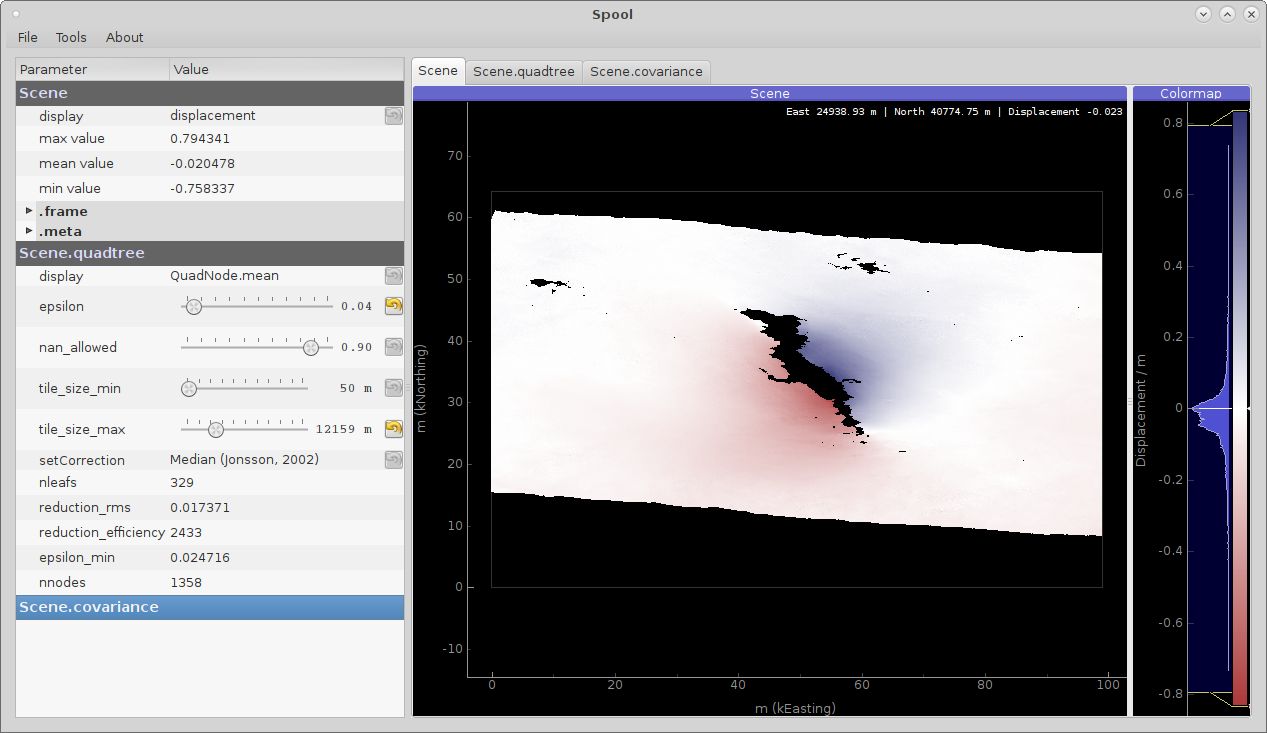

InSAR unwrapped displacement scene from Myanmar 2011 earthquake event

An unwrapped InSAR displacement scene from a 2011 Myanmar strike-slip event (Sudhaus and Gomba, 2016 [1]). Red color shows displacement away from the satellite, blue displacement towards LOS.

Quadtree manipulation

The Quadtree subsamples the InSAR displacement in order to have a reduced and thus more manageable dataset for modelling.

The four parameters characterizing the quadtree can be controlled through the gui (see also ../examples/03-quadtree)

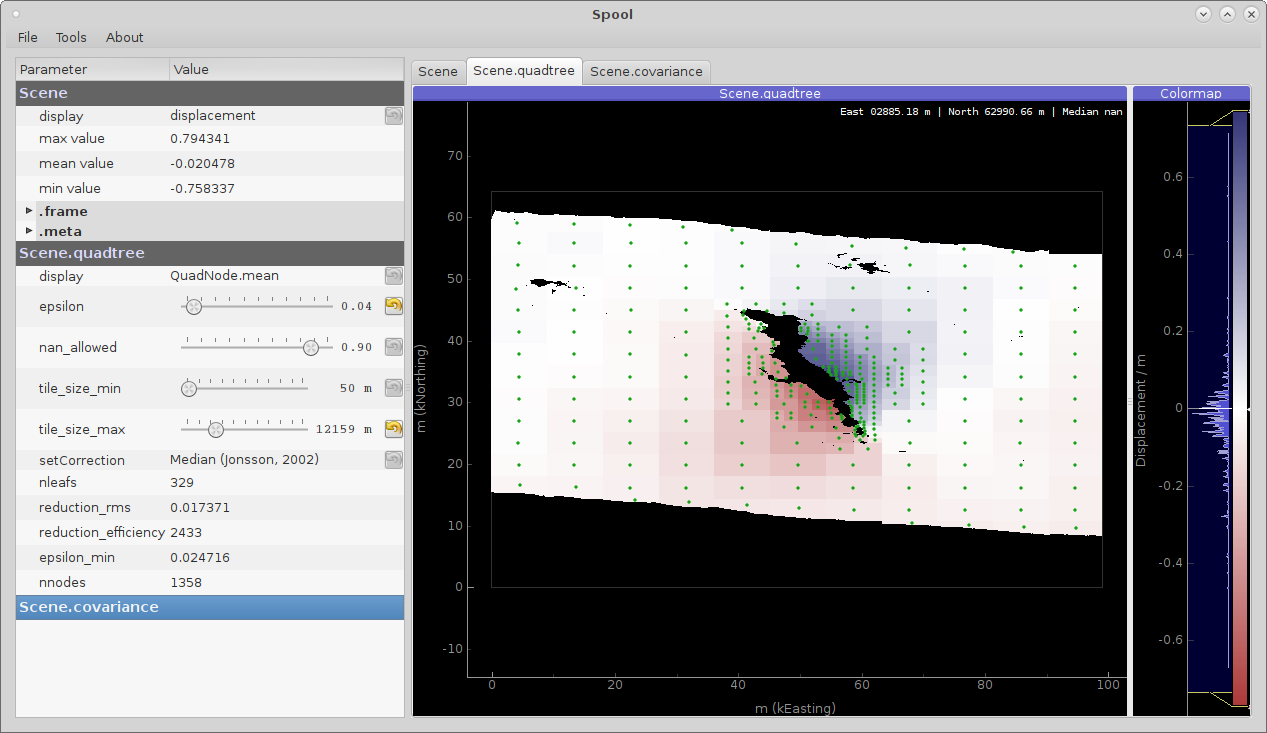

Quadtree parametrization and properties

Interactive quadtree parametrization through the spool GUI. Shown here is the mean displacement of the leafs (kite.quadtree.QuadNode.mean).

To get a feel for the covariance and error estimation we can have a look at the absolute weights of the leafs (see kite.quadtree.QuadNode.weight or kite.Covariance.getLeafWeight()).

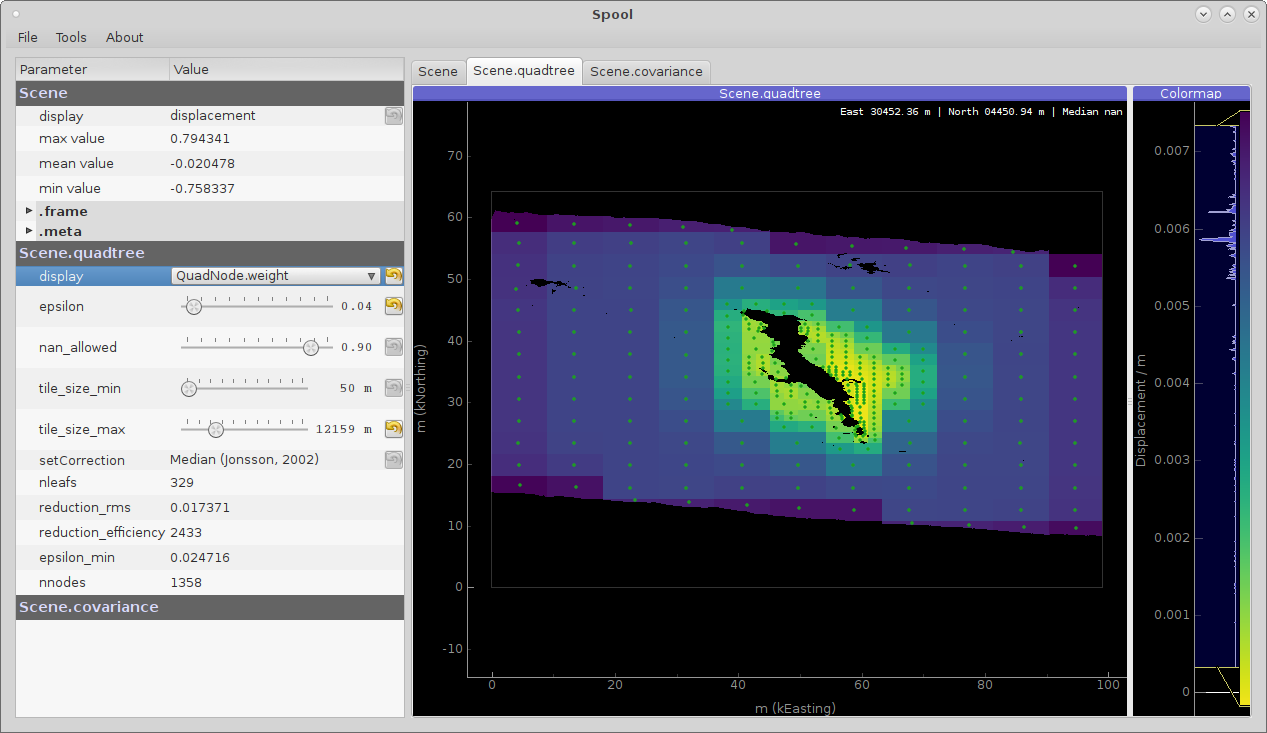

Quadtree nodes with associated errors/weights derived from kite.Covariance

Absolute weight of each QuadNode derived from Covariance. Yellow is low weight, blue are higher weighted leafs.

Covariance parametrisation

The covariance of the InSAR scene is a measure for the noise which affects our deformation signal. In order to generate a reasonable geodynamic model we need to quantify the contribution of noise to our signal. A common model for the noise contributionin satellite interferometry is:

\[d_{total} = d_{signal} + [d_{atmosphere} + d_{topography} + d_{err_baseline} + d_{other}]\]

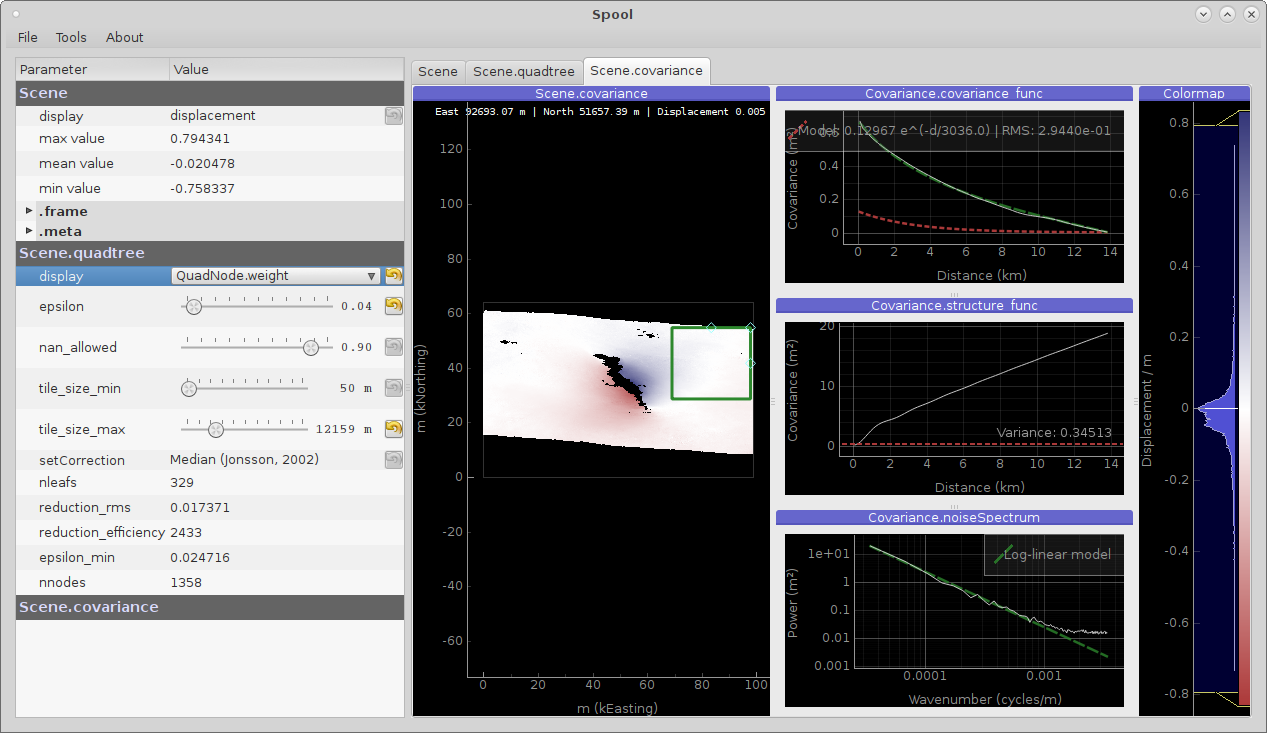

Covariance parametrization through spool GUI

Covariance parametrization through the GUI. The center panels shows the noise selector (green), the 2D plots illustrate (from top) covariance_func, structure_func and the noiseSpectrum().

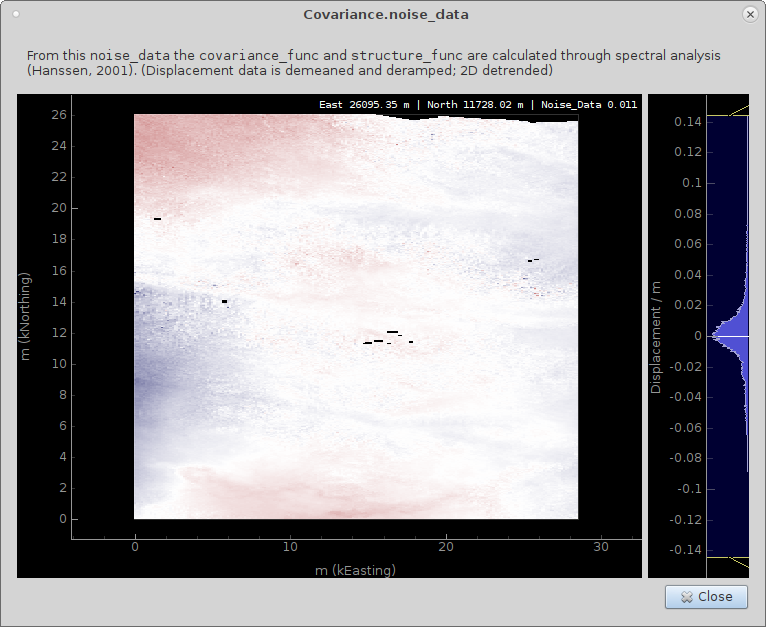

Noise patch used for covariance/error analysis

Right click on the noise spectrum or Tools ‣ Covariance Noise Data brings up the noise inspection window showing noise_data. Before the Fouriere transformation the data is deramped in 2D as well as demeaned.

References

[1]Sudhaus, Henriette and Gomba, Giorgio (2016) Influences of ionospheric disturbances in L-band InSAR data on earthquake source modelling. Living Planet Symposium 2016, 9-13 May 2016, Prague, Czech Republic.
